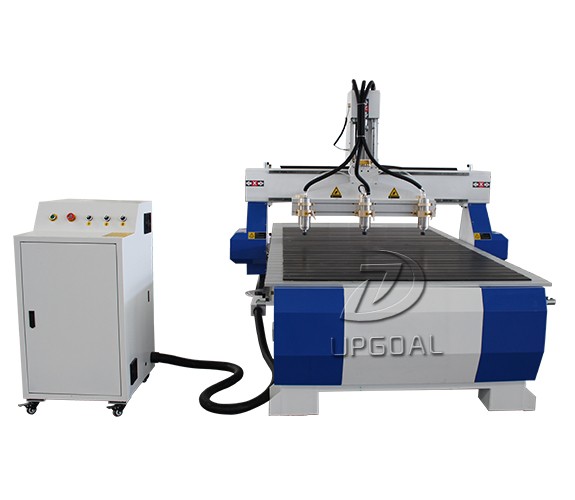

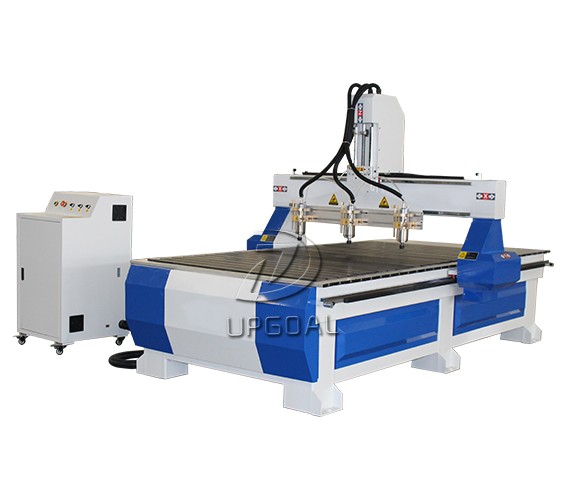

Three Spindle Heads CNC Wood Relief Engraving Machine 1300*2500*300mm

Brief Introduction:

Model: UG-1325-3
1300*2500*300mm
three spindle heads
spindle power 2.2kw
PCI NcStudio controller

INQUIRY NOW

Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.

Features

1.Strong welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.

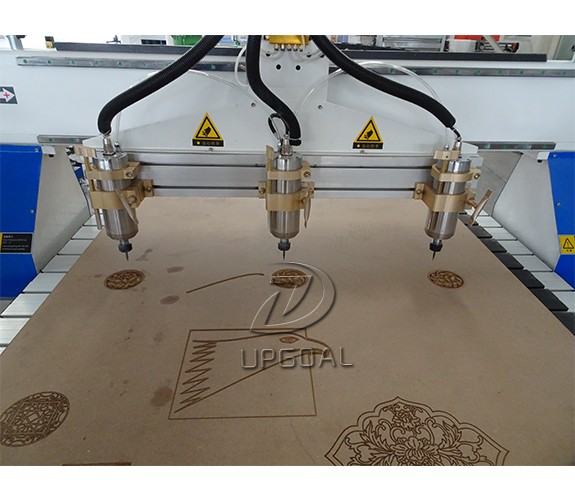

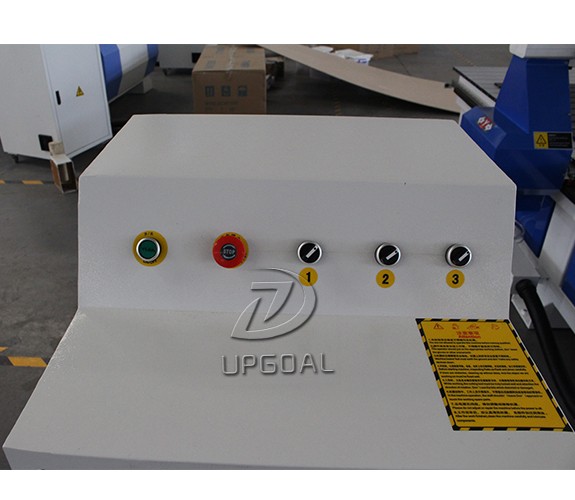

2. One Z-axis with three spindle heads, each time can process 3 pcs workpiece, much improving the working efficiency
3. Transverse aluminum alloy T slot working table, better for materials fixing.

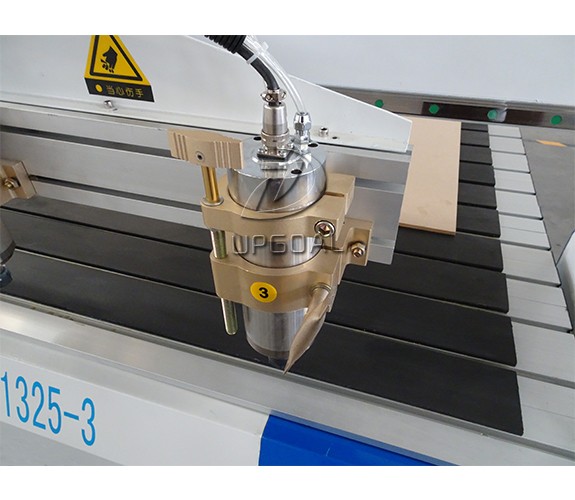

4.2.2KW water  cooling spindle( China famous Hanqi brand), each spindle has automatic calibration fixture,which is with stable performance, low noise and high torque, matched with high-performance frequency Inverter.

5.Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adpot imported precision ball screws, tools feeded with more accuracy.

6. Helical gears pinion with racks type transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision lead ball screw, high precision and more durable.

7. China famous Chuangwei brand 86BYGH450B & 86BYGH450C stepper motor and Leadshine stepper driver DMA860H for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

8.PCI NcStudio control system connect with the desktop computer, showing the processing path and estimate the processing time, more convenient and easy to operate.

9. Semi-auto lubrication system more convenient for maintenance.

10. Auto tool calibration, more convenient for each time Z-axis 0 point setting.

11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

12. With the function of break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.


Effective working area

1300(X)mm*2500(Y)mm*300(Z)mm

Each spindle working area about 430*(X)mm*2500(Y)mm*300(Z)mm

Materials

Strong welded steel pipe structure

Working table

Transverse aluminum T slot working table

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan)

Transmission

Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

Stepper motor (86BYGH450B & 86BYGH450C, CW motor)

and driver( DMA860H, leadshine) for XYZ-axis

Spindle motor

2.2kw water cooling*3 pcs( ER20)

Spindle speed

0-24000rpm

Collets type

ER20

Inverter

Sunfar7.5KW

Voltage

AC 220V± 10%, 50/60Hz, single phase

Traveling speed

>25000mm/min

Engraving speed

>12000mm/min

Machine accuracy

0.03mm

Control system

PCI NcStudio control system ( for desktop computer, windows XP/7)

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running

environment temperature

0-45 ℃

Relative humidity

30%-75%

Lubrication system

Semi-auto

Tool calibration

Auto

Certificate

CE
